emsarray.plot

emsarray.plot#

Plotting an entire figure#

The plot_on_figure() and animate_on_figure() functions will generate a simple plot of any supported variables. These functions are intended as quick and simple ways of exploring a dataset and have limited customisation options.

The examples section contains many worked examples on how to generate plots with more customisations. Plot with specified data limits is a good place to start.

Shortcuts#

These functions will generate an entire plot, but have limited customisation options.

emsarray.plot.plot_on_figure(figure, convention, *variables, title=None, projection=None, landmarks=None, gridlines=True, coast=True)#

Plot a DataArray on a matplotlib Figure.

This method is a shortcut for quickly generating simple plots. It is not intended to be fully featured. See the examples for more comprehensive plotting examples.

Parameters:

  • figure – The Figure instace to plot on.

  • convention – The Convention instance of the dataset. This is used to build the polygons and vector quivers.

  • *variables (xarray.DataArray or tuples of xarray.DataArray) – Any number of dataset variables to plot. Scalar variables should be passed in directly, while vector pairs should be passed in as a tuple. These will be passed to Convention.make_artist().

  • scalar (xarray.DataArray, optional) – The data to plot as an xarray.DataArray.

    Deprecated since version 1.0.0: Pass in variables as positional arguments instead

  • vector (tuple of numpy.ndarray, optional) – The u and v components of a vector field as a tuple of xarray.DataArray.

    Deprecated since version 1.0.0: Pass in variables as positional arguments instead

  • title (str, optional) – The title of the plot. Optional.

  • projection (Projection) – The projection to use when plotting. Optional, defaults to PlateCarree. This is different to the coordinate reference system for the data, which is defined in Convention.data_crs.

  • landmarks (list of landmarks, optional) – Landmarks to add to the plot. These are tuples of (name, point).

  • gridlines (bool, default True) – Whether to add gridlines to the plot using add_gridlines().

  • coast (bool, default True) – Whether to add coastlines to the plot using add_coast().

emsarray.plot.animate_on_figure(figure, convention, coordinate, *variables, title=None, projection=None, landmarks=None, gridlines=True, coast=True, interval=1000, repeat=True)#

Plot a xarray.DataArray on a matplotlib Figure as a FuncAnimation.

This method is a shortcut for quickly generating simple plots. It is not intended to be fully featured. See the examples for more comprehensive plotting examples.

Parameters:

  • figure (matplotlib.figure.Figure) – The Figure instace to plot on.

  • convention – The Convention instance of the dataset. This is used to build the polygons and vector quivers.

  • coordinate (xarray.DataArray) – The coordinate values to vary across frames in the animation.

  • *variables (xarray.DataArray or tuples of xarray.DataArray) – Any number of dataset variables to plot. Scalar variables should be passed in directly, while vector pairs should be passed in as a tuple. These will be passed to Convention.make_artist().

  • scalar (xarray.DataArray, optional) – The data to plot as an xarray.DataArray.

    Deprecated since version 1.0.0: Pass in variables as positional arguments instead

  • vector (tuple of numpy.ndarray, optional) – The u and v components of a vector field as a tuple of xarray.DataArray.

    Deprecated since version 1.0.0: Pass in variables as positional arguments instead

  • title (str or callable, optional) – The title for each frame of animation. Optional, will default to the coordinate value for each frame.

    If this is a string, str.format() will be called with the coordinate value for each frame.

    If this is a callable, it will be called with the coordinate value for each frame, and it should return a string for the title.

  • projection (Projection) – The projection to use when plotting. Optional, defaults to PlateCarree. This is different to the coordinate reference system for the data, which is defined in Convention.data_crs.

  • landmarks (list of landmarks, optional) – Landmarks to add to the plot. These are tuples of (name, point).

  • gridlines (bool, default True) – Whether to add gridlines to the plot using add_gridlines().

  • coast (bool, default True) – Whether to add coastlines to the plot using add_coast().

  • interval (int) – The interval between frames of animation

  • repeat ({True, False, 'cycle', 'bounce'}) – Whether to repeat the animation or not. True and 'cycle' will play the animation on loop forever. 'bounce' will play the animation forward, then backward, then repeat. False will play the animation once then stop.

Returns:

matplotlib.animation.Animation

Shortcuts#

These functions make common plotting operations simple. They are designed as quick shortcuts and aim for ease of use and simplicity over being fully featured. Most of these functions defer to other parts of matplotlib or cartopy for the actual implementation, and users are encouraged to call these underlying implementations directly if more customisation is required.

emsarray.plot.add_coast(axes, **kwargs)#

Add coastlines to an Axes. Some default styles are applied: the land polygons are light grey and semi-transparent, and the coastlines are opaque dark grey.

This uses the GSHHS coastline feature which provides a reasonably accurate, reasonably detailed coast line for large scale models. Plots of smaller regions may find the resolution not suitable and may need to source a more detailed coastline shape from elsewhere.

Parameters:
emsarray.plot.add_gridlines(axes, **kwargs)#

Add a Gridliner to the axes including gridlines and with tick labels on bottom and left sides. For all available options consult the cartopy Gridliner documentation.

Parameters:
Returns:

cartopy.mpl.gridliner.Gridliner

emsarray.plot.add_landmarks(axes, landmarks, color='black', outline_color='white', outline_width=2)#

Place some named landmarks on a plot.

Parameters:

  • axes (matplotlib.axes.Axes) – The axes to add the landmarks to.

  • landmarks (list of landmarks) – The landmarks to add. These are tuples of (name, point).

  • color (str, default 'black') – The color for the landmark marker and labels.

  • outline_color (str, default 'white') – The color for the outline. Both the marker and the labels are outlined.

  • outline_width (ind, default 2) – The linewidth of the outline.

Examples

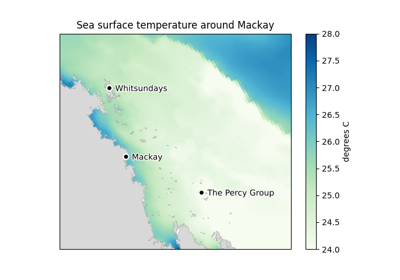

Plot a small area with landmarks

Plot a small area with landmarks

Utilities#

emsarray.plot.polygons_to_collection(polygons, **kwargs)#

Convert a list of shapely.Polygon instances to a matplotlib PolyCollection.

Parameters:

  • polygons (iterable of shapely.Polygon) – The polygons for the poly collection

  • **kwargs (Any) – Keyword arguments to pass to the PolyCollection constructor.

Returns:

matplotlib.collections.PolyCollection – A PolyCollection made up of the polygons passed in.

emsarray.plot.bounds_to_extent(bounds)#

Convert a Shapely bounds tuple to a matplotlib extents.

A Shapely bounds is a tuple of (min x, min y, max x, max y), while a Matplotlib extent is a list of (min x, max x, min y, max y).

Example

import cartopy.crs as ccrs
import matplotlib.pyplot as plt
from emsarray.plot import bounds_to_extent
from shapely.geometry import Polygon

polygon = Polygon([
    (148.30, -40.75), (146.47, -41.19), (144.67, -40.62),
    (146.05, -43.53), (146.87, -43.60), (148.30, -40.75),
])
figure = plt.figure(figsize=(10, 8), dpi=100)
axes = plt.subplot(projection=ccrs.PlateCarree())
axes.set_extent(bounds_to_extent(polygon.buffer(0.1).bounds))
emsarray.plot.make_plot_title(dataset, data_array)#

Make a suitable plot title for a variable. This will attempt to find a name for the variable by looking through the attributes. If the variable has a time coordinate, and the time coordinate has a single value, the time step is appended after the title.

Parameters:
Returns:

title (str) – A suitable title for a plot of this data array.

See also

emsarray.utils.datetime_from_np_time

Artist functions#

These functions will make a matplotlib Artist that can plot variables directly from a support emsarray dataset. These functions and the associated artists can be imported from emsarray.plot.artists.

emsarray.plot.artists.make_polygon_scalar_collection(axes, grid, data_array=None, add_colorbar=None, **kwargs)#

Make a PolygonScalarCollection for a Grid and DataArray with some sensible defaults.

Parameters:
Returns:

PolygonScalarCollection

emsarray.plot.artists.make_polygon_vector_quiver(axes, grid, data_array=None, **kwargs)#

Make a PolygonVectorQuiver for a Grid and DataArray with some sensible defaults.

Parameters:

  • axes (matplotlib.axes.Axes) – The axes to add the artist to

  • grid (emsarray.conventions.Grid) – The grid containing the geometry to plot on.

  • data_array (tuple of (xarray.DataArray, xarray.DataArray) or None) – The data arrays to plot. Optional, will make some zero length arrows if not set.

  • kwargs (Any) – Extra kwargs for styling the PolygonVectorQuiver See matplotlib.collections.Quiver for valid options.

Returns:

PolygonVectorQuiver

emsarray.plot.artists.make_polygon_contour(axes, grid, data_array, add_colorbar=True, **kwargs)#

Make a tricontour() plot through the centres of a polygon grid. This is a wrapper around making a PolygonTriContourSet.

Parameters:
Returns:

PolygonTriContourSet

emsarray.plot.artists.make_node_scalar_artist(axes, grid, data_array=None, *, add_colorbar=None, **kwargs)#

Make a NodeTriMesh for a Grid and DataArray with some sensible defaults.

Parameters:
Returns:

NodeTriMesh

Artists#

class emsarray.plot.artists.GridArtist#

A matplotlib Artist subclass that knows what Grid it is associated with, and has a set_data_array() method. Users can call GridArtist.set_data_array() to update the data in a plot. This is useful when making animations, for example.

set_data_array(data_array)#

Update the data this artist is plotting. The data array must be defined on the same grid, and must not have any extra dimensions such as depth or time.

class emsarray.plot.artists.PolygonScalarCollection(verts, sizes=None, *, closed=True, **kwargs)#

A GridArtist wrapper around a PolyCollection. This artist can plot scalar variables on grids with polygonal geometry.

classmethod from_grid(grid, data_array=None, **kwargs)#

Create a PolygonScalarCollection for a particular polygon grid of a dataset.

Parameters:

  • grid (emsarray.conventions.Grid) – The grid to make the polygon collection for

  • data_array (xarray.DataArray) – A data array, defined on the grid, with data to plot. Optional, if not provided the polygons will be empty.

Returns:

PolygonScalarCollection

class emsarray.plot.artists.PolygonVectorQuiver(ax, *args, scale=None, headwidth=3, headlength=5, headaxislength=4.5, minshaft=1, minlength=1, units='width', scale_units=None, angles='uv', width=None, color='k', pivot='tail', **kwargs)#
classmethod from_grid(axes, grid, data_array=None, **kwargs)#

Create a PolygonVectorQuiver for a particular polygon grid of a dataset.

Parameters:

  • grid (emsarray.conventions.Grid) – The grid to make the quiver for

  • data_array (tuple of (xarray.DataArray, xarray.DataArray) or None) – A data arrays, defined on the grid, with data to plot.

Returns:

PolygonVectorQuiver

class emsarray.plot.artists.PolygonTriContourSet(axes, triangulation, data_array, grid, **kwargs)#
classmethod from_grid(axes, grid, data_array, **kwargs)#

Create a PolygonTriContourSet for a particular polygon grid of a dataset.

Parameters:
Returns:

PolygonTriContourSet

class emsarray.plot.artists.NodeTriMesh(triangulation, **kwargs)#

A GridArtist wrapper around TriMesh that can plot on the vertices of a dataset triangulation.

classmethod from_grid(grid, data_array=None, **kwargs)#

Create a NodeTriMesh for a particular node grid of a dataset.

Parameters:
Returns:

NodeTriMesh
